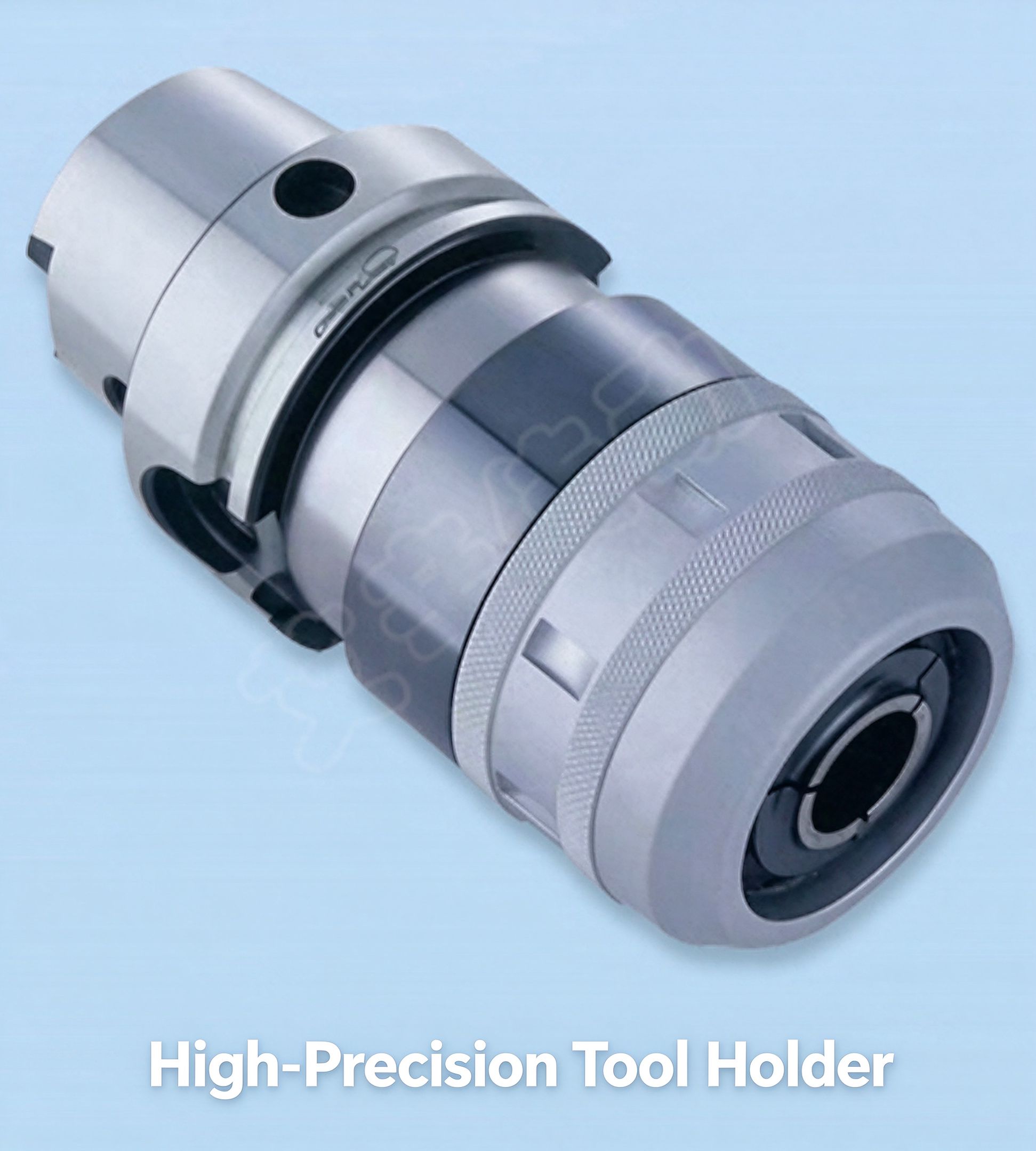

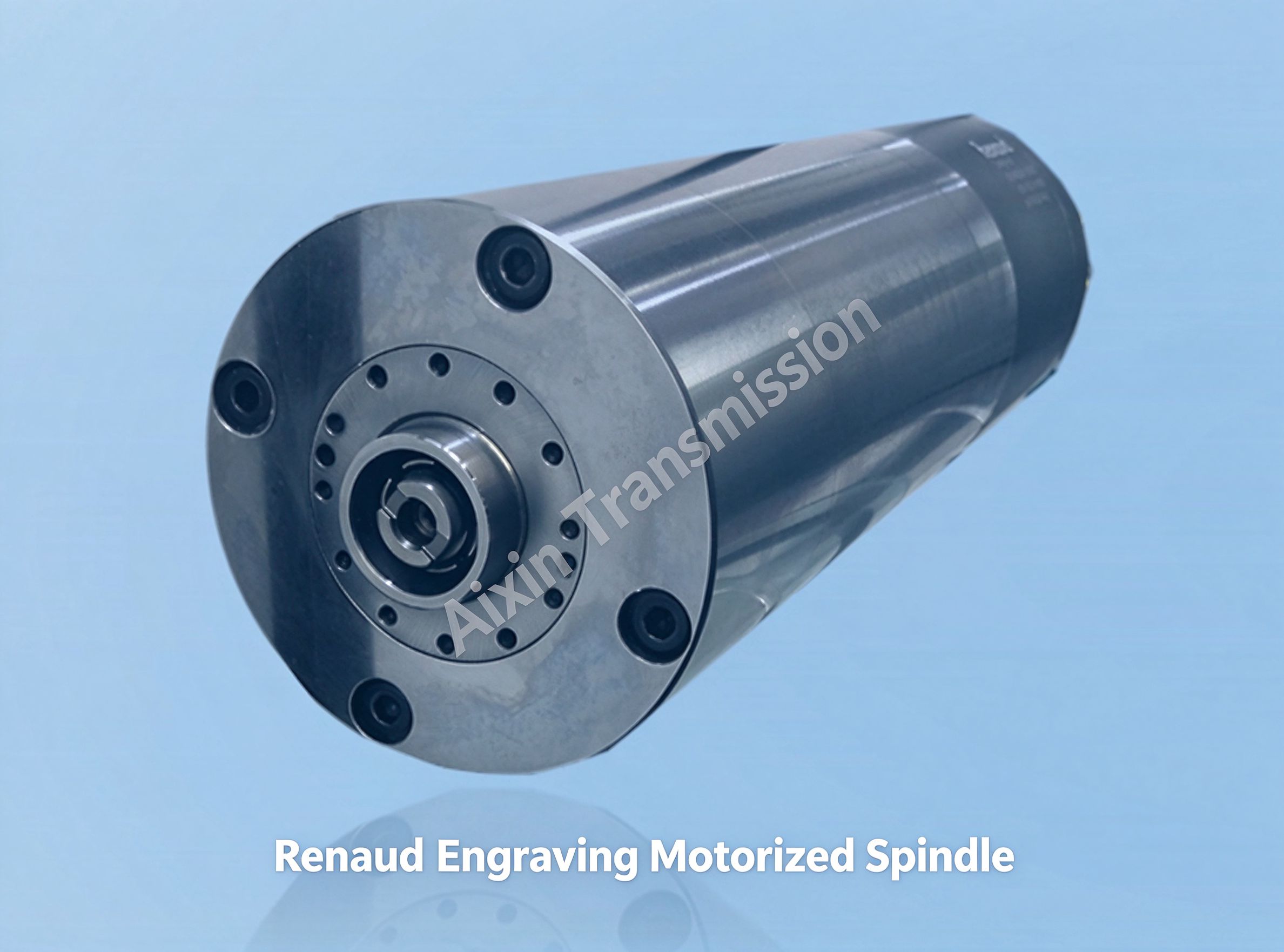

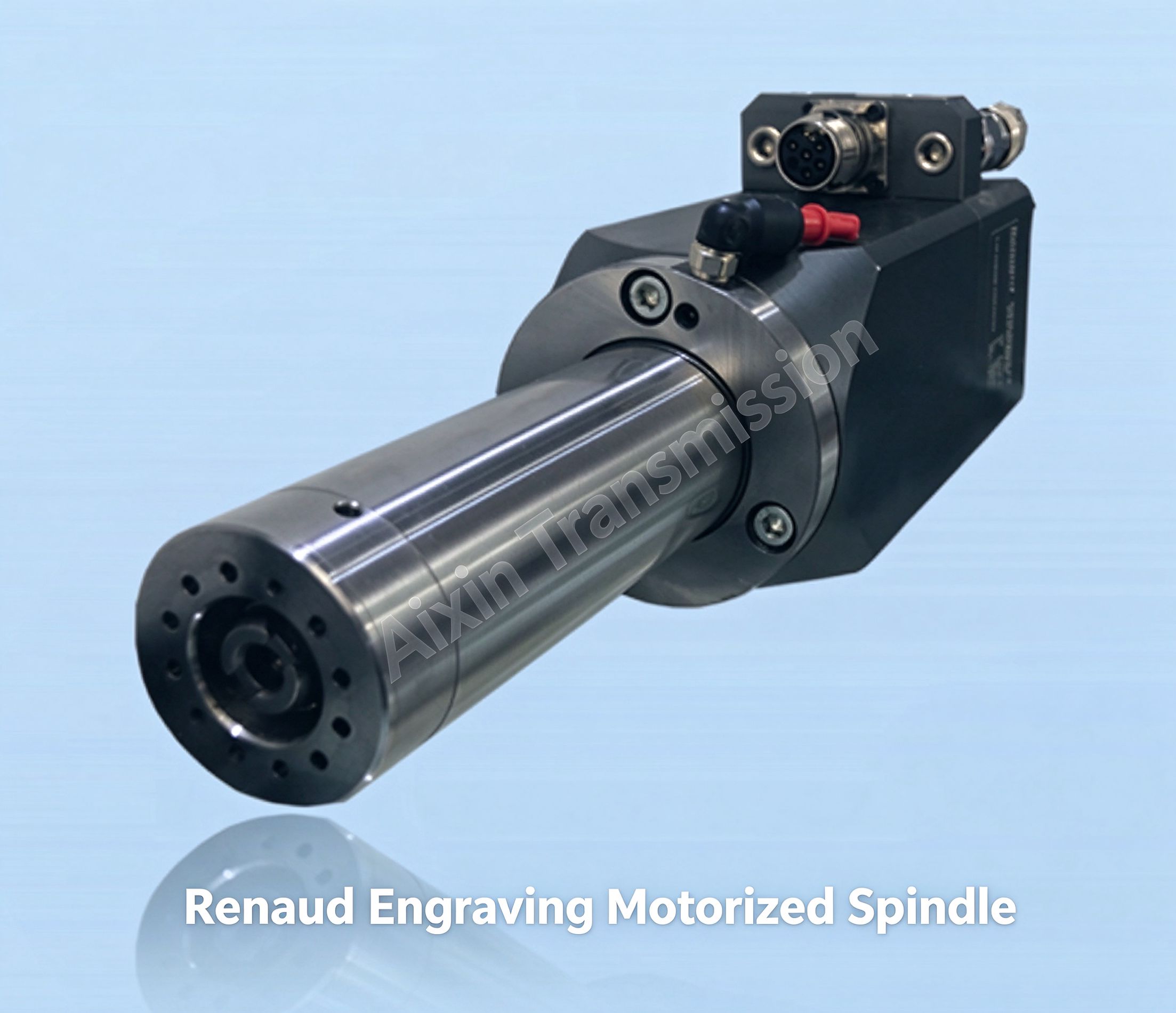

Various high-speed, high-precision engraving spindles are the flagship products of Renaud. The design, machining, assembly and testing of the spindles are all completed at the original Swiss Renaud factory. All components used are globally first-class brands, such as e+a stators and rotors from Switzerland, OTT drawbar mechanisms from Germany, and bearings from FAG, GMN, etc. The radial and axial runout at the engraving spindle nose is no more than 1.5um, and the combined vibration at the front and rear bearing positions does not exceed 1mm/s. The spindle outer diameter range is 38-170mm. Tool change methods include automatic and manual tool change. Automatic tool change spindles are available with HSK, ISO (BT), BBT and other taper series. The spindle can be optionally equipped with an encoder or through-spindle coolant function. In addition to spindles, we can configure cooling systems, oil-air lubrication systems, high-frequency converters, high-precision tool holders and other peripheral products for customers. Our engraving spindles include: 1. Special engraving spindles for the 3C industry. 2. Special engraving-milling motorized spindles for robots. 3. Special motorized spindles for watch machining. 4. Special motorized spindles for eyeglass machining. 5. Special motorized spindles for dental equipment. 6. Motorized spindles for marble engraving. 7. Motorized spindles for aluminum alloy engraving. 8. Other special engraving-milling motorized spindles. .... Contact us for more details >>
Peripheral Equipment for Spindles and Motors:We provide various related equipment supporting high-speed spindles and motors
